TITLE SLIDE:

(music begins) MEE audio Logo

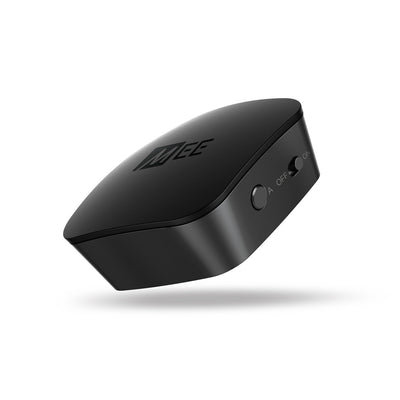

[Fade in to a hand holding the MEE audio Connect Bluetooth Audio Transmitter and then the transmitter connected to a TV]


NARRATOR:

Thank you for your purchase of the MEE audio Connect Bluetooth Audio Transmitter.

In this video, I'll help you set up the CONNECT to work with your TV.


[Fade in to a hand plugging one end of a USB power cable into a laptop and the other end into a wall charger]


We'll start by plugging the USB power cable into a power source.

You can use a computer USB port, wall adapter, or the USB port on your TV.


[Fade to a hand plugging one end of a USB power cable into a TV. The green light blinking on the back of the CONNECT transmitter indicates charging]


If you're using a USB port on your TV, be aware that most TVs do not have power while turned off so your CONNECT may run out of battery if you don't use your TV for a long time.

Not a huge deal - you'll just need to wait a couple of minutes for it to charge the next time you turn your TV back on.

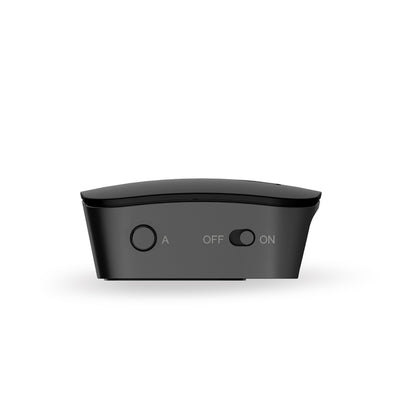

[Cut to a hand sliding the power switch from OFF to ON on the transmitter]


Once the CONNECT is plugged into power, go ahead and slide the power switch on.


TITLE SLIDE: Pairing your Bluetooth headphones


NARRATOR:

Now let's pair your Bluetooth headphones.

Skip this step if your CONNECT came with a set of headphones in the box.


[Fade in to a Bluetooth headphone and a CONNECT transmitter on a table]


First we need to put your headphones into pairing mode.


[Cut to a hand showing the Bluetooth pairing process on a headphone]


Usually this is done by pressing and holding the power or multi-function button for five to ten seconds until the light blinks red and blue and the headphones indicate that they are ready to pair.


[Cut to a shot of two Bluetooth Headphones]


The pairing process can vary depending on brand and model.

If you can't figure out how to put your headphones into pairing mode, please consult their user manual or contact the manufacturer of the headphones.


[Cut to the pairing process for the Connect transmitter to a Bluetooth headphone]


Once your headphones are in pairing mode, put the CONNECT into pairing mode by clicking the 'A' button.

A blinking blue light will indicate that it is ready to pair.

The CONNECT and Bluetooth headphones must be in pairing mode at the same time in order to pair.

The blinking blue light will change to a solid blue light once successfully paired.


TITLE SLIDE: Choose ONLY ONE audio cable supported by your TV


NARRATOR:

Now, let's determine which audio cable to use with your TV.

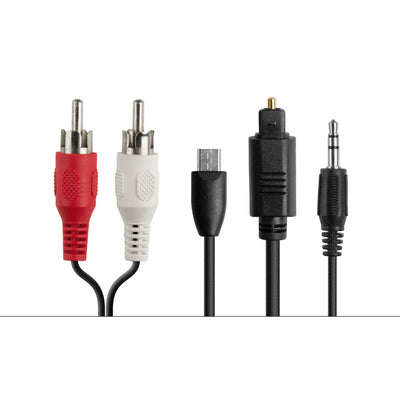

[Fade in to the Connect transmitter with three audio cables on a table: Digital Optical, Headphone Jack, and RCA]


What we're looking for is the TV's audio output.

There are three ways to hook up the CONNECT: Optical, headphone jack or RCA.


[Cut to two examples of where to find TV ports and highlight the different port options]


You can consult your TV's user manual to see the available options or look at the back of your TV.

If you're not able to locate the audio output, contact the manufacturer of your TV.


[Cut back to the three audio cables on a table]


You only need to hook up one of these audio cables, so as soon as you hear sound, you can skip to the end of the video to learn how to turn off your CONNECT.


TITLE SLIDE: Option 1: Using the optical cable


[Fade in to a TV panel with the Digital Audio Out (Optical) highlighted. Cut to the optical cable with the CONNECT transmitter]


NARRATOR:

If your TV has a jack labeled 'Digital Audio Out Optical', you can use the optical cable.


[Show a hand removing the plastic caps from the optical cable. Cut to a hand plugging one end of the optical cable to a TV port]


The first step is to remove the plastic caps from the optical cable and plug it into the TV and CONNECT transmitter.

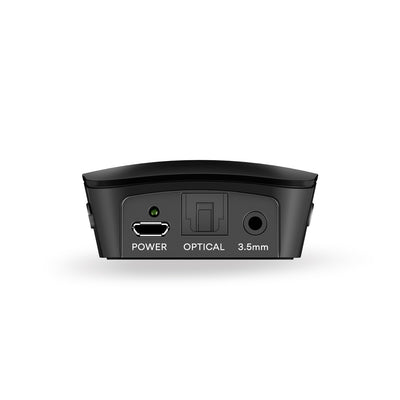

[Cut to the back of the Connect transmitter and a hand plugging in the optical cable into its optical port]


The optical port on the CONNECT is covered by a door.

The door does not need to be removed, it will move out of the way when you plug in the cable.

When plugging the cable into the CONNECT, you should feel it click into place.

If it's not clicking into place, rotate the cable and try it again until it does.


[Cut to the TV port with the optical cable and then cut to a hand testing the volume on the Bluetooth headphones. A solid blue light is shown on the Connect transmitter to indicate successful pairing]


Once the optical cable is plugged into the CONNECT and your TV, raise the volume on your headphones and check for sound.

If you're getting sound, then you're good to go.


[Cut to TV. Then cut to opening the menu settings in the TV and showing switching of the menu process]


If you're not getting sound, we'll need to adjust some of your TV settings.

These settings can be located in the Audio menu or in the Expert, Advanced, or Additional Settings menu depending on your TV.

We'll need to change your Audio Output to Optical and then change your Audio Output Format to PCM.

If you can't locate these settings or you're still not getting sound please contact the TV manufacturer and ask them how to switch your Optical Audio Out to PCM mode.


[Cut back to the Bluetooth headphones and a solid blue light shown on the Connect transmitter to indicate successful pairing]


Once the CONNECT is connected and you're getting sound, you can control the volume using your Bluetooth headphone.


TITLE SLIDE: If you're hearing sound, you're all set!


TITLE SLIDE: Option 2: Using the headphone jack


[Cut to the TV panel with the headphone jack port highlighted. Cut to the 3.5 mm audio cable being shown with the Connect transmitter on a table]


NARRATOR:

If your TV does not have the optical port and has a headphone jack usually labeled 'Headphones', 'Phones', or with a headphone symbol, you can use the 3.5 mm audio cable.


[Cut back to the TV panel with the headphone jack port highlighted]


It will not work in a port that's labeled 'Repair', 'Support', or 'Mic'.


[Cut to the back of the Connect transmitter and a hand plugging in the 3.5 mm audio cable into its headphone jack port. Then cut to a hand plugging the other end of the 3.5 mm audio cable to the TV's headphone jack port]


Simply plug in the audio cable into the rightmost port of the CONNECT and then into the headphone jack port of your TV.


[Cut to a hand controlling the volume on a remote in front of a TV. Fade back to the audio cable plugged into the TV]


Most TVs will automatically mute your TV speakers while using the headphone jack.


[Fade back to the hand controlling the volume on a remote in front of a TV. Cut to a hand controlling the volume on the Bluetooth headphone]


Once the cable is plugged in securely, turn up the volume on both the TV and your headphones.


[Cut to a hand testing the volume on the Bluetooth headphones. A solid blue light is shown on the Connect transmitter to indicate successful pairing. Cut back to the Bluetooth headphones and a solid blue light shown on the Connect transmitter to indicate successful pairing]


The CONNECT volume can be controlled using your TV remote and your headphones.


TITLE SLIDE: If you're hearing sound, you're all set!


TITLE SLIDE: Option 3: Using the RCA cable


[Cut to the TV panel with the headphone Audio Out ports highlighted. Cut to the RCA cable being shown with the Connect transmitter on a table]


NARRATOR:

If your TV does not have an optical port or headphone jack, but has red and white RCA jacks labeled 'Audio Out', you can use the RCA cable.

Note that these jacks must be labeled 'Audio Output'.


[Cut to the TV panel with incorrect examples highlighted. Cross out wrong ones and show green check mark on correct ones]


RCA jacks labeled 'AV In', 'Component In', or just 'Audio' are audio inputs and will not work.


[Cut to a hand plugging in the red and white connectors into the TV ports. Then cut to the back of the Connect transmitter and a hand plugging in the other end of the RCA cable into its headphone jack port]


Plug the red and white connectors into the respective red and white ports on your TV and the other end into the CONNECT transmitter.


[Fade back to the hand controlling the volume on a remote in front of a TV. Cut to a hand controlling the volume on the Bluetooth headphone]


At this point, you can check if you have sound by raising the volume on both your TV and your Bluetooth headphones.


[Cut to TV. Then cut to opening the menu settings in the TV and showing switching of the menu process]


If you're not getting sound, you'll need to change some settings on your TV.

Typically the setting that needs to be changed is the Analog Audio Out or just Audio Out setting and it would need to be changed from Fixed to Variable.

You can check for sound again at this stage.

If you're still not getting any sound, you may need to set your TV internal speakers to Off in the Audio menu.


[Cut to a hand testing the volume on the Bluetooth headphones. A solid blue light is shown on the Connect transmitter to indicate successful pairing]


To control the volume, turn the volume on your TV all the way up and use the volume controls on your Bluetooth headphone to adjust the volume.


TITLE SLIDE: If you're hearing sound, you're all set!


TITLE SLIDE: Turning off your Connect


[Fade in to a hand turning off the Bluetooth headphones]


NARRATOR:

Once you're finished using the CONNECT, simply turn off your headphones and they will disconnect automatically.

If your CONNECT is plugged into power at all times, you do not have to turn it off between each use.


[Show hand turning the Bluetooth headphones on]


If you do choose to turn it off, simply turn it back on before you turn your headphones back on.


[Solid blue light shows on the Connect transmitter]

Once you turn your headphones back on they will reconnect automatically shown by the solid blue light on the CONNECT.

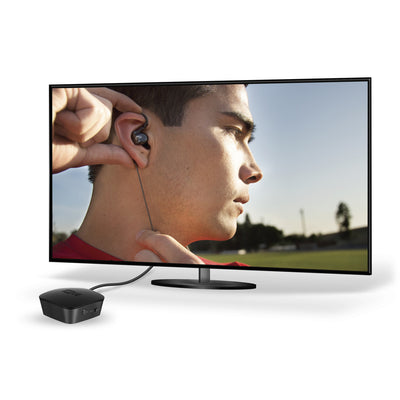

[Cut to closeup of Connect transmitter connected to a TV]


That's it!

We hope you enjoy the MEE audio Connect Bluetooth Audio Transmitter.


TITLE SLIDE:

MEE audio Logo (music fades out)
